EN 10219 C9 Interlocking Pipe Piles
- Model
- En10219 Spiral Steel Pipe Pile
Item specifics
- Length
- 12-60m
- OD
- 1016 1473 1626mm or Custom
- Main Structure
- Steel pipe pile body + C9 locking buckle
- Material
- A252 Gr.2/3 S235JRH S355JR/J2H S460MH
- MOQ
- 2-5 Tons
Review
Description
EN 10219 C9 Interlocking Pipe Piles
EN 10219 C9 Interlocking Pipe Piles are cold-formed welded hollow steel pipe piles for structural use. EN 10219 C9 Interlock Piling Pipe is a specialized structural pile used for deep foundation pits, cofferdams, and other support projects. Its core feature is to achieve mechanical interlocking connection through C9 locking, which has advantages such as anti-seepage, anti displacement, and efficient construction.
It is mainly used in fields such as building structures, such as foundation engineering of buildings and support structures of some large buildings.
Different steel grades have different mechanical properties and chemical compositions to meet the needs of different projects.
Parameter
Item No: | Piling Pipe 001 |
Specification: | EN 10219-1 & 2 |
Grade: | S235Jrh S235JRH S355JR/J2H S460MH,etc |
Minimum Yield strength: | 235/355/420 Mpa |
Tensile strength: | 360-510Mpa |
Single length: | 12M-60M |
Wall thickness: | 6mm-25.4mm |
None-distructive test: | Online X-ray |
Hydrotest: | Available |
Certificate: | API 5L/ISO 14001/CE/CNAS |
FOB port: | Tianjin port |
Carbon Equivalent CEV | ≤0.44% |
Buckle Design | C9 Shape |
Connection Method
This C9 interlock type is compatible with Larssen sheet piles, and widely used in combi-wall piling system.
Mechanical Properties of En 10219 C9 Interlocking Pipe Piles
| EN 10219 | Strength |
| S235 | ~250 MPa |
| S275 | ~300 MPa |
| S355 | ~350 MPa |
S420 | ~415 MPa |
S460 | ~450–460 MPa |
Advantage Performance Parameters
Verticality Control
The verticality of the first pile after installation is ≤ 0.5%
Water Stop Performance
The precise interlocking of the lock can block the water seepage channels in complex geological layers such as gravel layers
Flexural Strength
Permanent reinforcement plate in the locking area to enhance local stiffness
Anti-corrosion Treatment
Surface zinc layer thickness ≥ 80 μ m, or coated with corrosion-resistant coating
Welding Requirements
The locking buckle is welded using double-sided continuous welds, with a weld leg height of ≥ 8mm
Quality Control

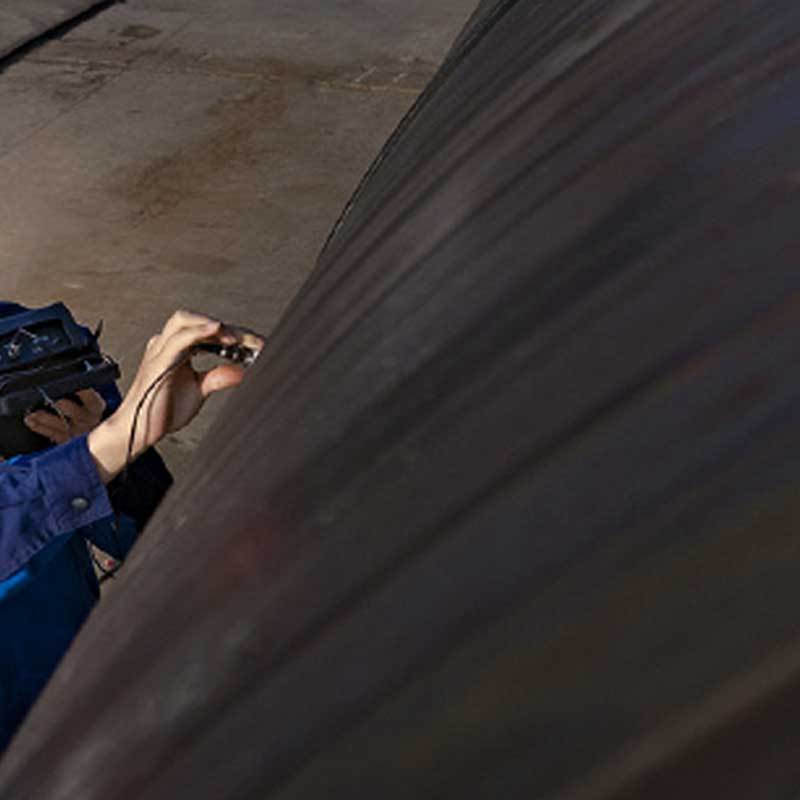

MUT Testing
Cangzhou Spiral Steel Pipe Group is equipped with advanced MUT flaw detection equipment, which can inspect spiral steel pipes online without damaging the pipe body. Utilizing the uniform propagation of ultrasonic waves in homogeneous materials, when encountering different media (such as cracks, pores, slag inclusions, and other defects), reflections, refractions, or scatterings occur due to differences in acoustic impedance. The receiving probe captures these echo signals, which are processed to form waveforms or images, enabling the determination of defect location, size, and nature.
MUT flaw detection significantly reduces product quality issues, effectively safeguarding customer interests from loss and ensuring the smooth implementation of pile foundation projects.

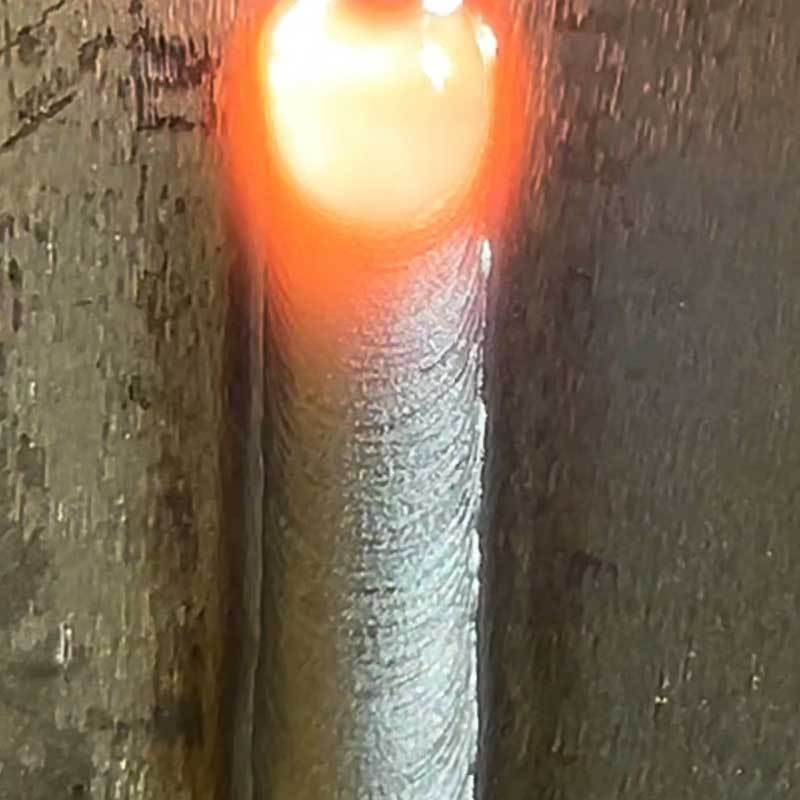

MPI Testing
The C9 latch and spiral steel pipe were welded using full welding, and the inspection method employed was MPI (Magnetic Particle Inspection). When discontinuities such as cracks or pores exist in the material, the magnetic flux lines distort at the defect site, causing some lines to escape the surface and form a **leakage magnetic field**. This field attracts and holds magnetic powder, creating visible agglomerations at the defect location, thereby directly revealing the position, size, and shape of the defects. Manual magnetic particle inspection is a crucial step in quality control.
Application
1. Deep water cofferdam for cross sea bridges/high-speed railway bridges
2. Subway foundation pit support (pile spacing is usually 1.2m)
3. River regulation, port and dock expansion, sand enclosure projects, etc
Differentiated Advantage
Why Choose Us
1. The maximum caliber can reach 3620mm and can be customized. It is difficult to find such C9 locking spiral pipe pile factories in the industry.
2. The material can be customized, and all types of European standard EN10219 steel grades can be produced.
3. One stop procurement service, from raw materials to finished C9 locking spiral pipe piles, can be achieved here.
4. CNAS laboratory can ensure that the quality of C9 locking spiral steel pipe piles is 100% qualified and traceable.
5. 365 days a year, 7 * 24-hour technical consultation online, ensuring that customers can find us anytime and anywhere for technical answers and factory inspections.
6. Possess complete international authoritative certifications such as CE, ISO9001, ISO14001, ISO45001, CNAS, etc.
Latest Project

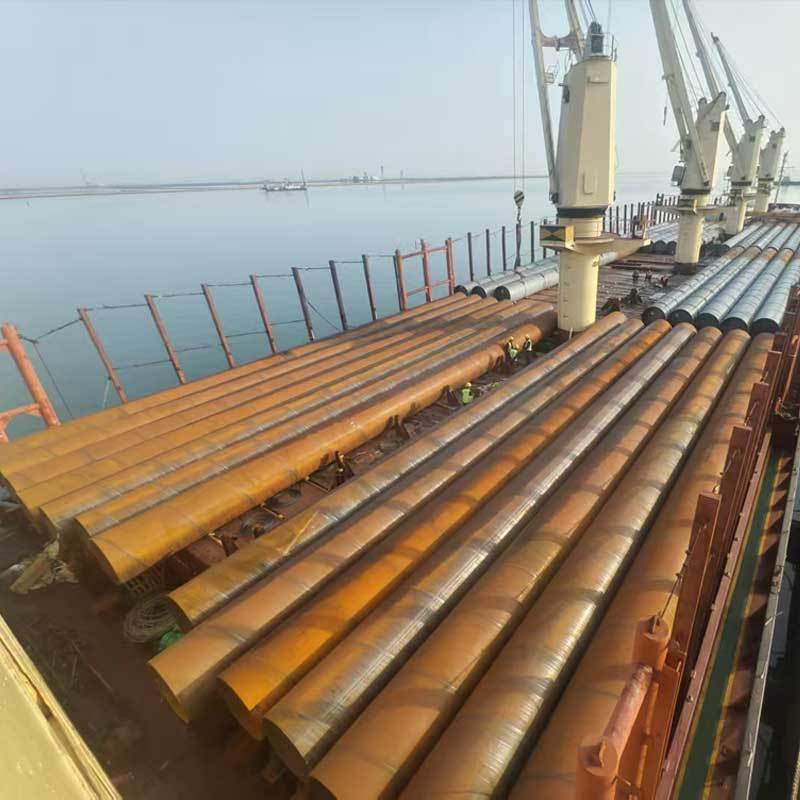

5700 Tons Mozambique Pile Pipe Project
The steel piles in this project are mainly used for port and dock construction, through locking structures and steel plates
Pile linkage forms a flood control cofferdam, providing a dry construction environment for subsequent projects. Product Core
Heart technology requirements focus on connection strength, anti-corrosion performance, and structural stability.
Project Detail,click here.
