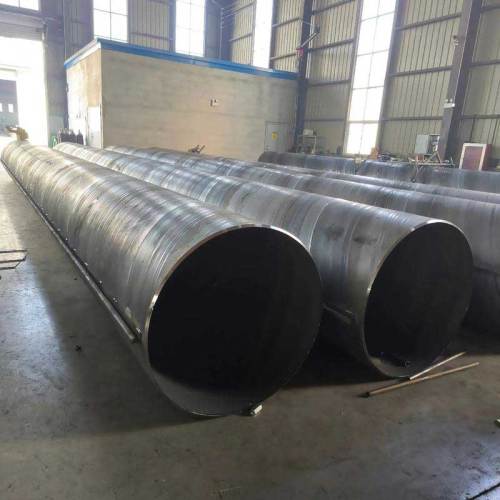

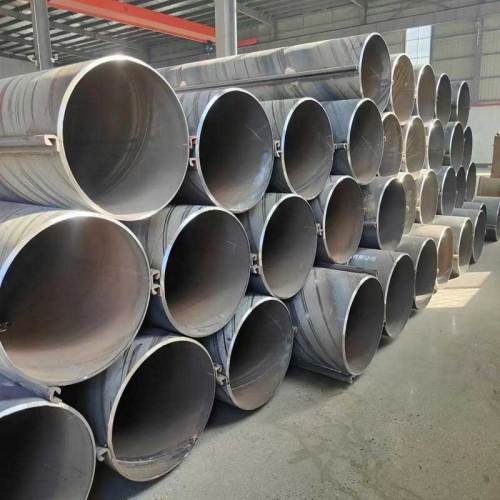

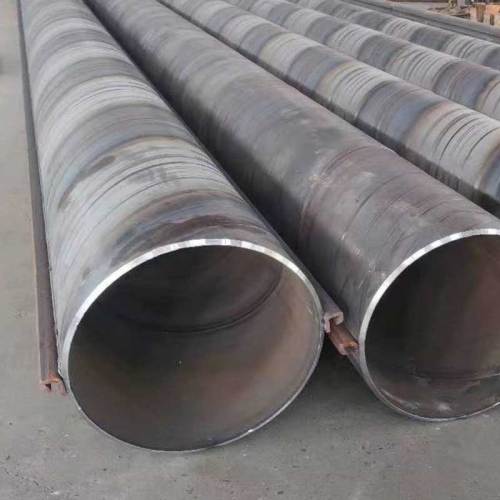

EN 10219 C9 Interlock Piling Pipes
EN 10219 C9 Interlock Piling Pipes are cold-formed welded hollow steel pipe piles for structural use. EN 10219 C9 Interlock Piling Pipe is a specialized structural pile used for deep foundation pits, cofferdams, and other support projects. Its core feature is to achieve mechanical interlocking connection through C9 locking, which has advantages such as anti-seepage, anti displacement, and efficient construction.
It is mainly used in fields such as building structures, such as foundation engineering of buildings and support structures of some large buildings.
Different steel grades have different mechanical properties and chemical compositions to meet the needs of different projects.
Parameter
Item No: | Piling Pipe 001 |
Specification: | EN 10219-1 & 2 |
Grade: | S235Jrh S235JRH S355JR/J2H S460MH,etc |
Minimum Yield strength: | 235/355/420 Mpa |
Tensile strength: | 360-510Mpa |
Single length: | 12M-60M |
Wall thickness: | 6mm-25.4mm |
None-distructive test: | Online X-ray |
Hydrotest: | Available |
Certificate: | API 5L/ISO 14001/CE/CNAS |
FOB port: | Tianjin port |
Carbon Equivalent CEV | ≤0.44% |
Buckle Design | C9 Shape |

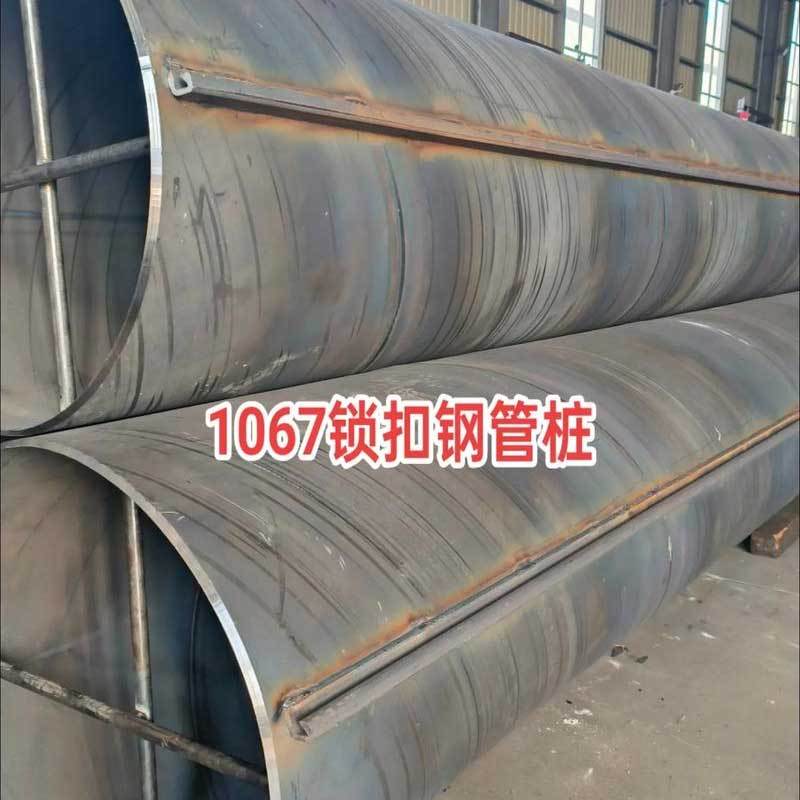

Connection Method

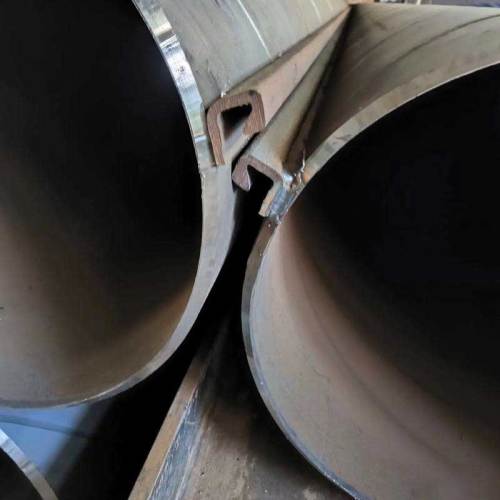

The C9 locking buckle on one side of the pipe pile is inserted into the C9 locking buckle cavity of another steel pipe pile, and the open side is closed with an arc-shaped iron sheet. The bottom is welded with a bottom plate to form a closed chamber.
Advantage Performance Parameters

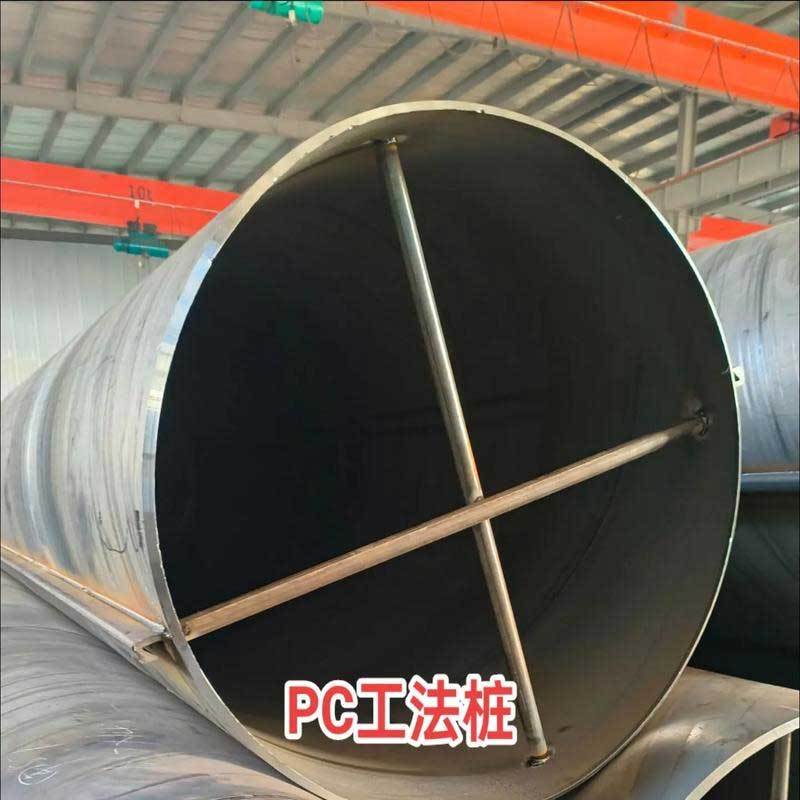

Verticality Control
The verticality of the first pile after installation is ≤ 0.5%
Water Stop Performance
The precise interlocking of the lock can block the water seepage channels in complex geological layers such as gravel layers
Flexural Strength
Permanent reinforcement plate in the locking area to enhance local stiffness
Anti-corrosion Treatment
Surface zinc layer thickness ≥ 80 μ m, or coated with corrosion-resistant coating

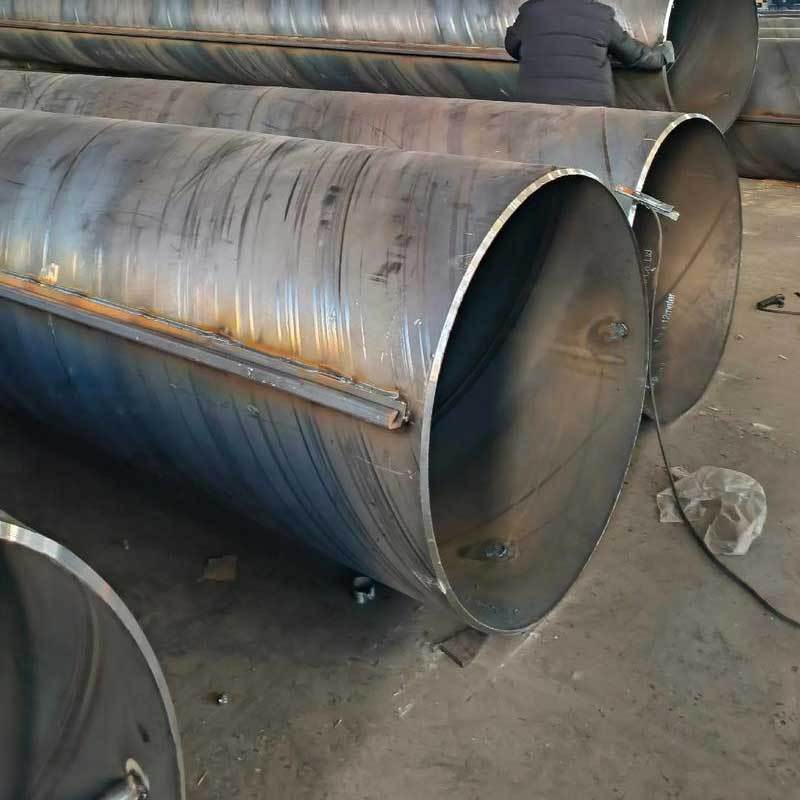

Welding Requirements

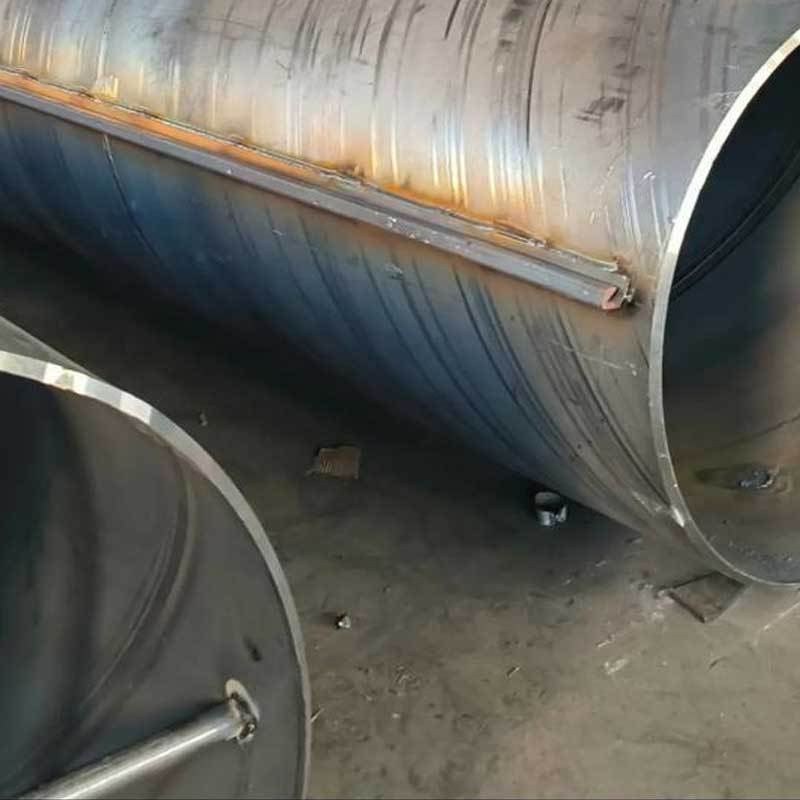

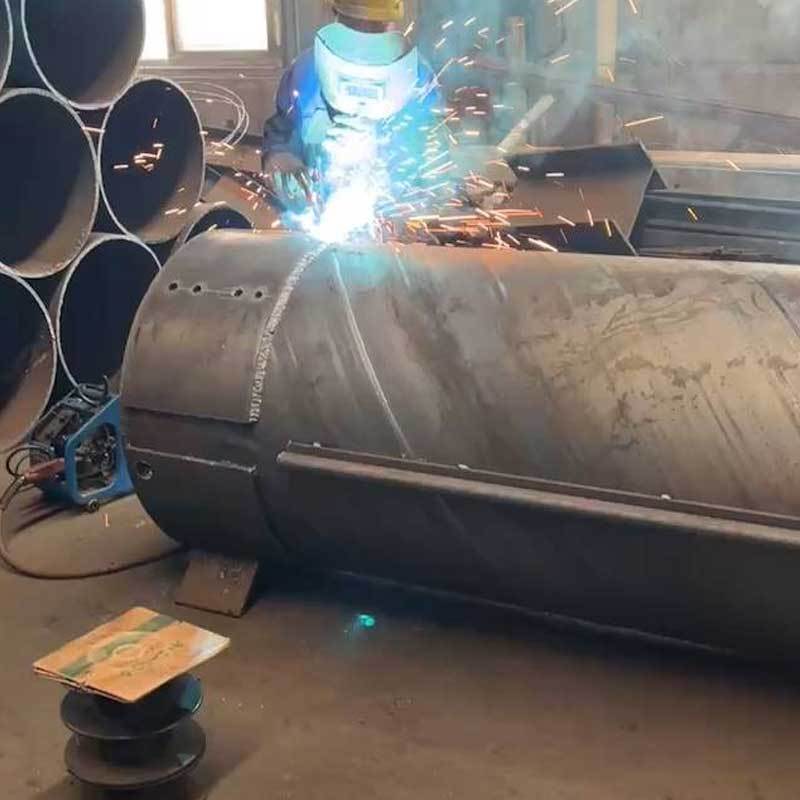

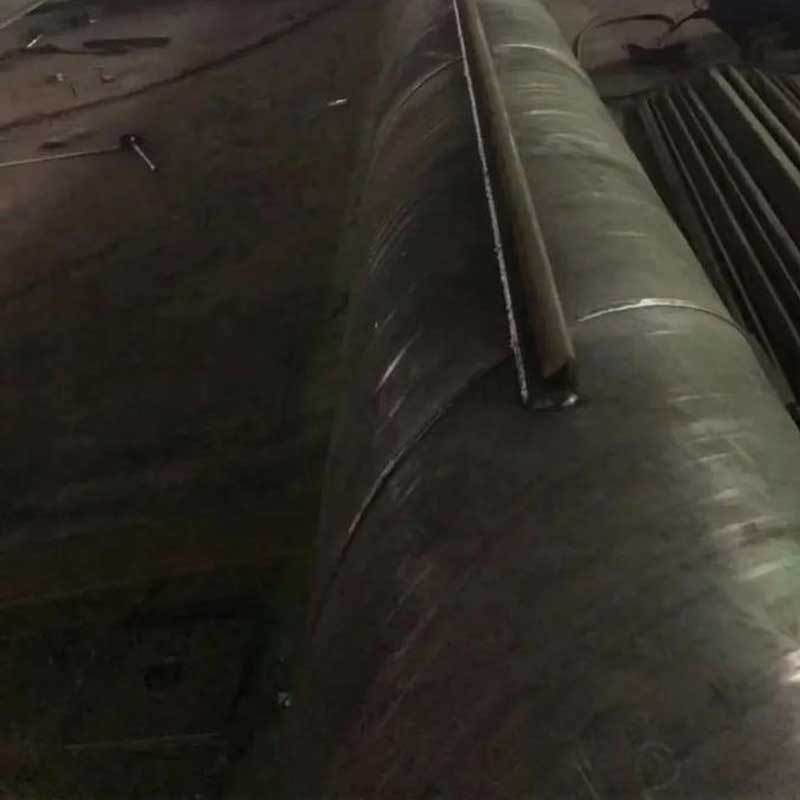

The locking buckle is welded using double-sided continuous welds, with a weld leg height of ≥ 8mm
Application

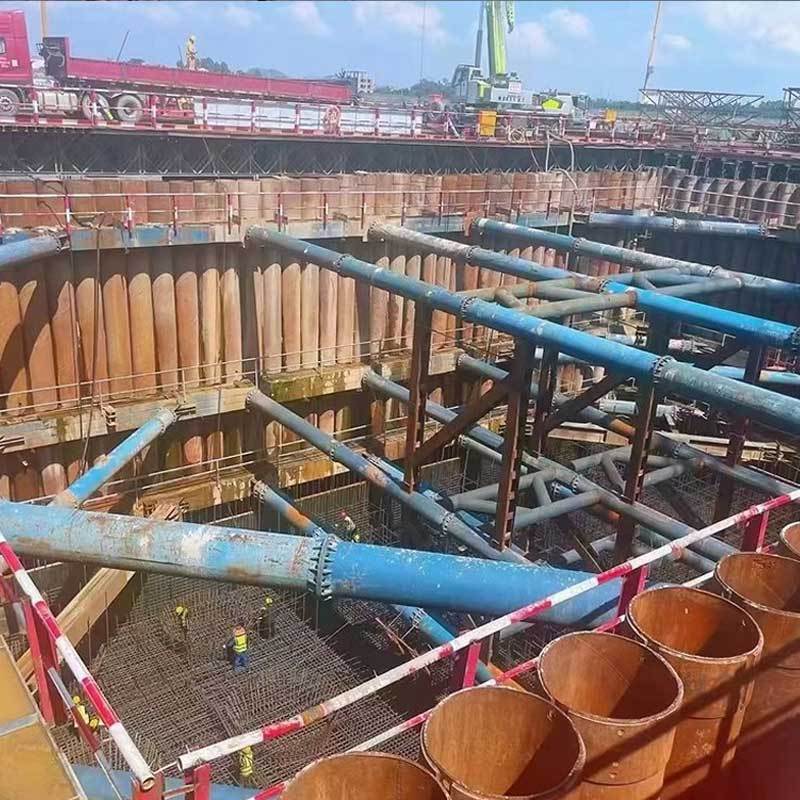

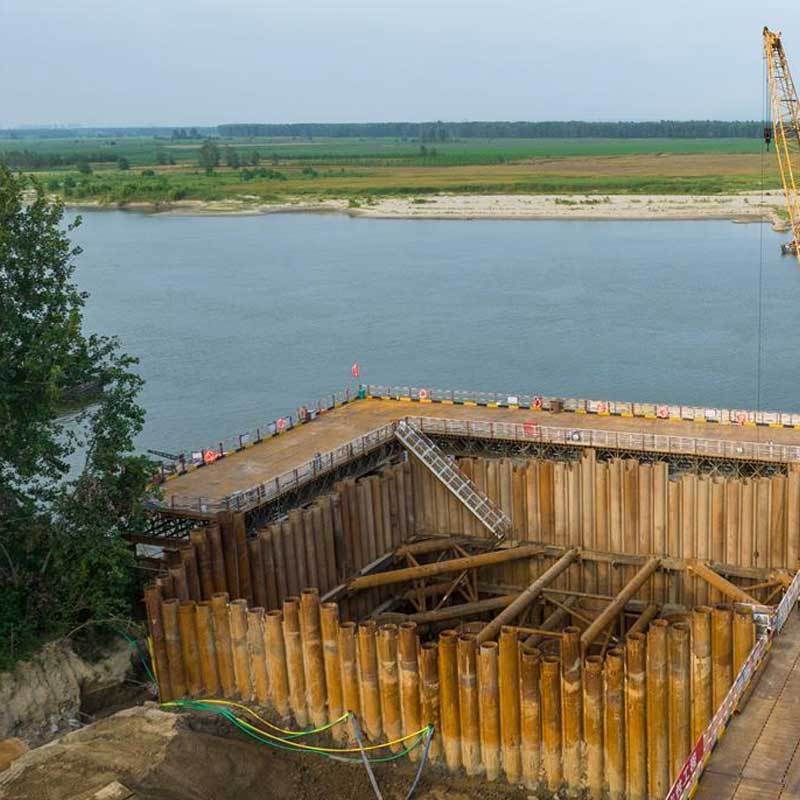

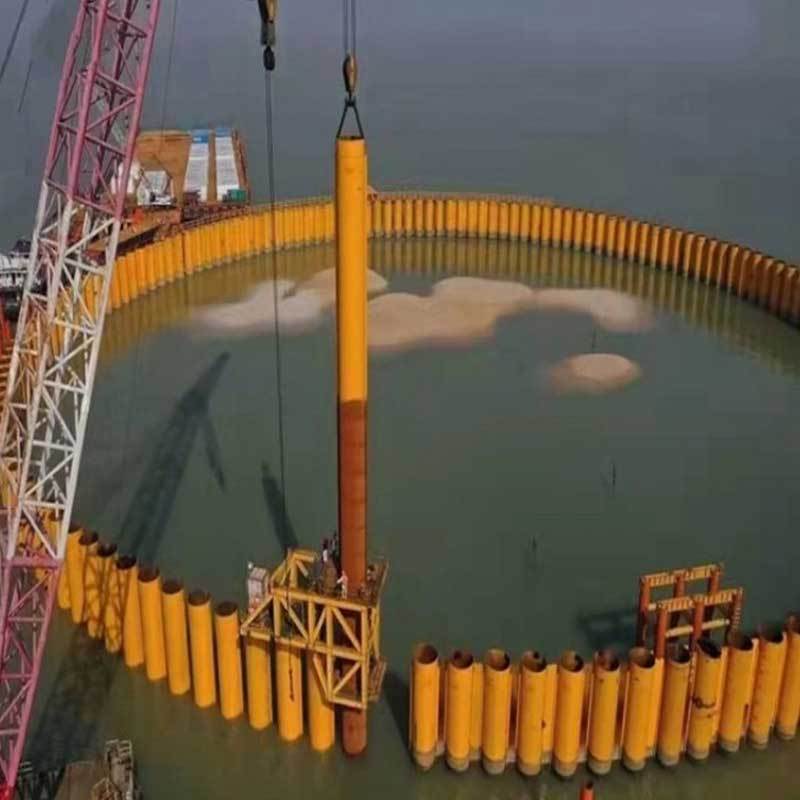

1. Deep water cofferdam for cross sea bridges/high-speed railway bridges
2. Subway foundation pit support (pile spacing is usually 1.2m)
3. River regulation, port and dock expansion, sand enclosure projects, etc
Differentiated Advantage

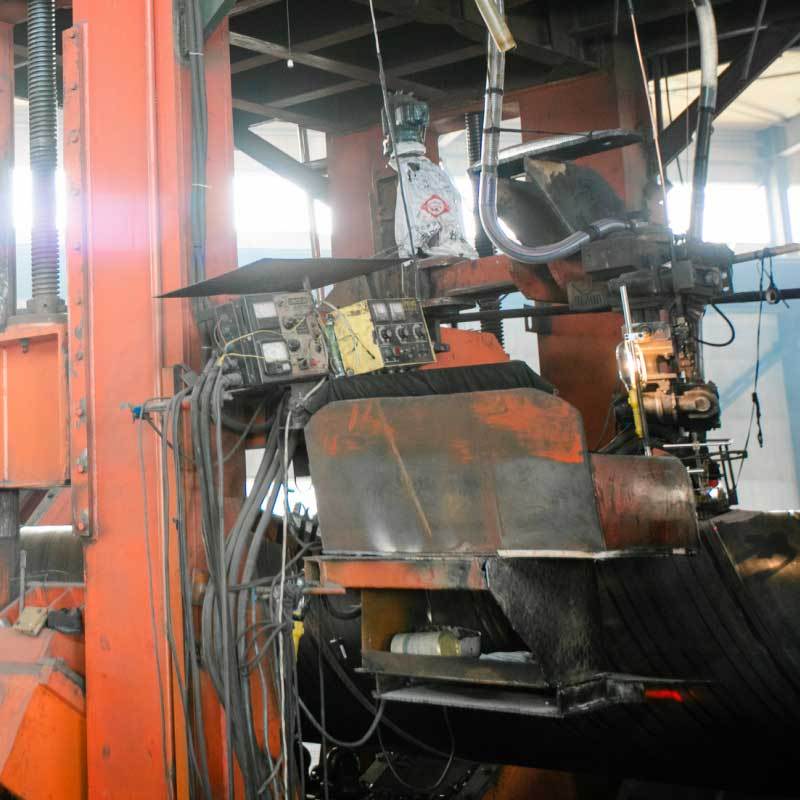

Why Choose Us
1. The maximum caliber can reach 3620mm and can be customized. It is difficult to find such C9 locking spiral pipe pile factories in the industry.
2. The material can be customized, and all types of European standard EN10219 steel grades can be produced.
3. One stop procurement service, from raw materials to finished C9 locking spiral pipe piles, can be achieved here.
4. CNAS laboratory can ensure that the quality of C9 locking spiral steel pipe piles is 100% qualified and traceable.
5. 365 days a year, 7 * 24-hour technical consultation online, ensuring that customers can find us anytime and anywhere for technical answers and factory inspections.
6. Possess complete international authoritative certifications such as CE, ISO9001, ISO14001, ISO45001, CNAS, etc.
